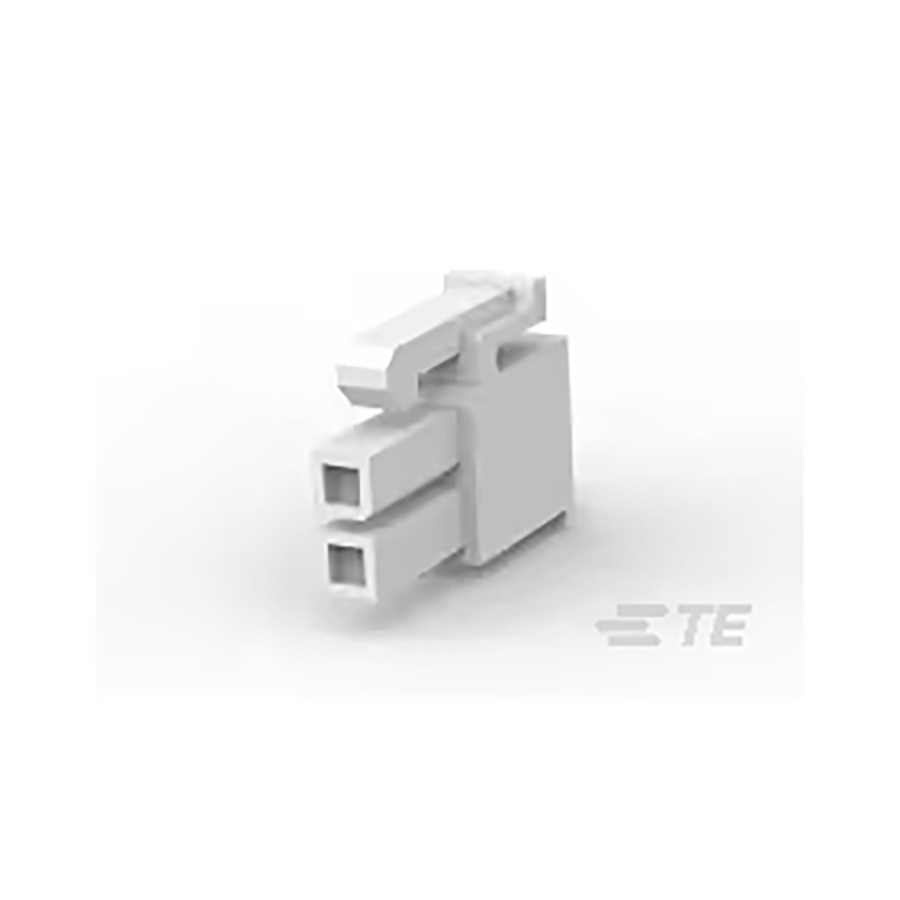

1586019-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1586019-2
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Socket Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 5.4102 mm |
| Width | 20 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.795 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 20 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 2 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 106.68 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | White, Natural |
| Insulation Diameter | 3.0988 mm |
| VDE Tested | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 1767
Distributors
pcbx
pcbxUnit Price$0.11050
Ext.Price$0.11050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11050 | $0.11050 |
| 10 | $0.10060 | $1.00600 |
| 50 | $0.09158 | $4.57900 |
| 100 | $0.08211 | $8.21100 |
| 500 | $0.07362 | $36.81000 |
| 1000 | $0.07086 | $70.86000 |
| 3000 | $0.06821 | $204.63000 |
| 5000 | $0.06566 | $328.30000 |
